Tips and Tricks

Enhance your diagramming process with practical tips on versioning, work-in-progress patterns, and exporting scenes using Excalidraw. Effectively manage diagram history and optimize your files with embedded scene exports.

Diagram Versioning

Versioning technical diagrams enables traceability, change tracking, collaborative editing, aligns diagrams with evolving design states while maintaining documentation accuracy.

Versioning Patterns

Choose any versioning pattern of your choice.
Prominent examples are:

SemVer (Semantic Versioning)

Format: MAJOR.MINOR.PATCH
Example: 2.3.1
Usage: Increment major for breaking changes, minor for backward-compatible features, and patch for bugfixes or small improvements.
*used in all examples on the KSTD website.

CalVer (Calendar Versioning)

Format: YYYY.MAJOR.MINOR
Example: 2024.1.2
Usage: Combines time-based and traditional versioning.

Sequential Versioning

Format: Incremental numbers
Example: 1, 2, 3
Usage: Simple systems or firmware (e.g., v5).

’Work-in-Progress’ Pattern

Working with Excalidraw, or Excalidraw+, there’s no support for an automated ‘release process’ or similar. So since it’s a manual process, the recommendation is to keep it simple.

The following patterns are just a suggestion of the author to make live easier.

When actively working and progressing on architecture diagrams, there’s always a current/latest working status. It’s called the work-in-progress state, abbreviated as WIP.

Saving to Disk & Filename Rotation

Let’s work with at a simple example

The topology design for the application ‘ecommerce-product-view’

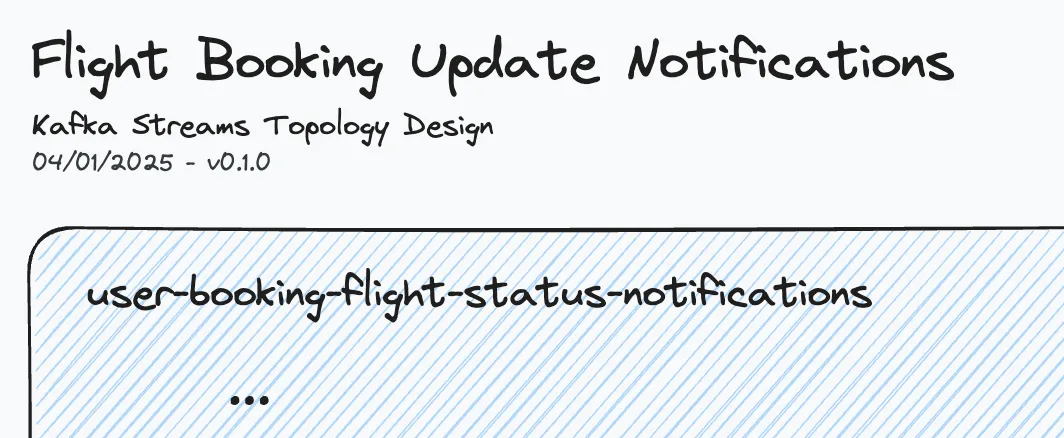

Starting form a blank canvas, we start working on a new diagram, adding the following header and topology, incl. title, date, and set the new target version we’re currently working on: v0.1.0:

This is our WIP document we’re always going to work on. We save this under a filename with the suffix *_WIP

user-booking-flight-status-notifications_WIP.excalidraw

Once we have finished a first ‘complete’ draft, we proceed with the “release” of v0.1.0 as follows:

1. save the document to disk
   (user-booking-flight-status-notifications_WIP.excalidraw)
2. in the file system, make a copy of the WIP file with the new name:
   user-booking-flight-status-notifications_v0.1.0.excalidraw
3. bump the diagram version (header) in the WIP file still open in Excalidraw to the next patch version v0.1.1 and keep progressing.

You can persist the new WIP state at any point in time. When you get to a new complete state, simply repeat this manual “release process”.

Version Control Systems (git)

There’s also the option to maintain your .excalidraw files in e.g. a git repo as part of your general branching, tagging and release process.

Just note that due to the lack of automation, there’s a good chance for the version used in the diagram(s) to deviate from e.g. git tags.

Diagram History: Keeping Minor Iterations on the Canvas

As you progress with the design and introduce minor or major changes, it’s a good pattern to just clone the entire previous minor diagram to a new draft right below and bump the diagram version in the header.

E.g. this is how my latest excalidraw WIP document looks like:

(kstd-example_user-booking-flight-status-notifications_WIP.excalidraw)

☝️ The diagram was cloned for each minor version bump.

This works fine with the filename rotation pattern introduced above, you just keep a history as you progress with the design for reference.

Excalidraw Tips

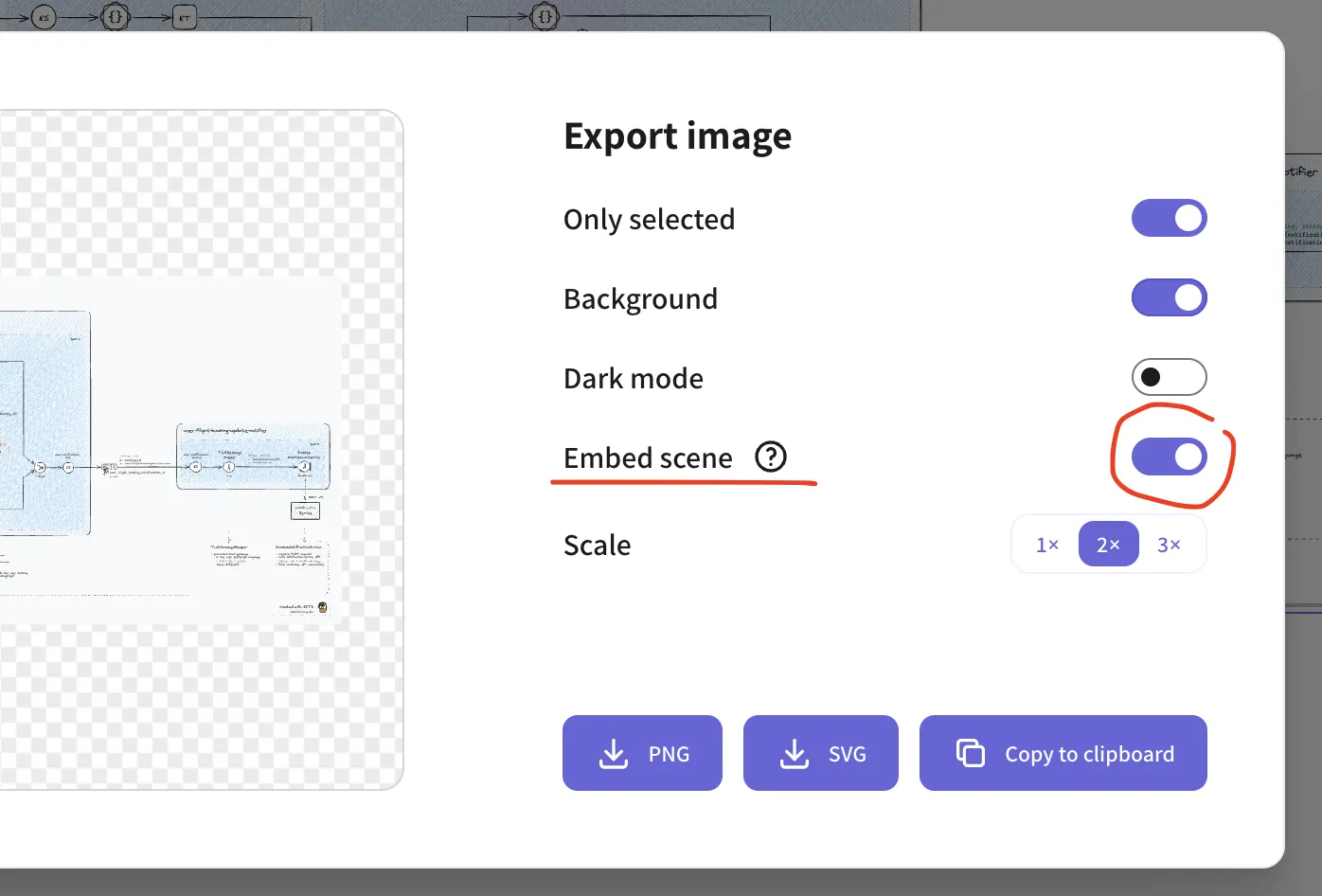

Export with Embedded Scene

When exporting your diagrams as PNG or SVG for documentation or to share with colleagues, there’s an option to embed the scene into the exported image.

ℹ️ Scene data will be saved into the exported PNG/SVG file so that the scene can be restored from it. Will increase exported file size.

Keeping these rich images as part of your technical documentation (e.g. in Confluent) allows for easy recovery and maintenance of the KSTD excalidraw diagrams in the future.
